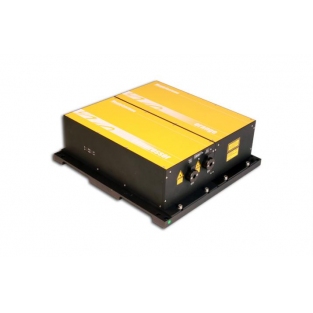

MenloSystem Orange飞秒激光器
orange飞秒激光器
特点:
高稳定性
低振幅和相位噪声
全保偏光纤方案
单锁模态输出
Figure 9 技术
60秒内输出激光
Item #
ORANGE
ORANGE-HIGH-POWER
ORANGE-515
Wavelength
1040 nm ± 10 nm
1040 nm ± 10 nm
515 nm ± 10 nm
Average Output Power
>40 mW
>1 W
>250 mW
Pulse Energy
>0.4 nJ
>10 nJ
>2.5 nJ
Pulse Width
< 150 fs
Repetition Rate
100 (50 - 250 MHz with VARIO)a
Repetition Rate Stability
< 1 ppm Over 90 Hours at Constant Temperature
Output Port
Fiber Coupled (FC/APC)
Free Space
Free Space
Auxiliary Output Port
-
-
Free-Space, 1040 nm, >1 Wb
Additional Fiber-Coupled Seed Port
1 (Up to 4 with MULTIBRANCH)
Polarization
Linear, PM 980 Fiber
Linear, P-Polarized
Linear, S-Polarized
Beam Height
-
75 mm
75 mm
